Spectra Physics Mai Tai DeepSee laser system / Manufactured 07/2011 / Tunable from 690 nm to 1040 nm / Dispersion compensation

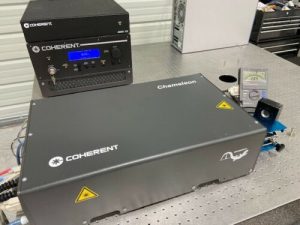

Coherent Ultrafast laser system / Model: Chameleon / Manufactured 09/2005 / 12 watt Verdi pump / Less than 555 hours on the head and diodes

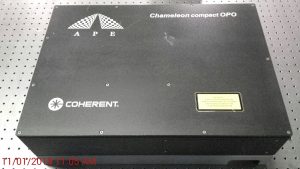

APE Coherent Chameleon Compact OPO Optical Parametric Oscillator



JK Fiber Laser welding system / Includes System 5000 Work Station with JK2000FL 2000 watt fiber laser source / Manufactured 2014 / 1080 nm output / Currently setup for welding, capable of cutting and drilling / Equipped with Aerotech PRO165 X and Y axis stages and an Aerotech PRO115 Z axis stage with A3200 drivers / System is in new/unused condition



Lumonics 700 Series Pulsed Nd:YAG Laser / Model JK 702H / Rated 350 Watts / 1064 nm / Please contact us if you need only a certain component. We will part out or sell the entire system.



Spectra Physics Mai Tai Ultrafast laser system / Femtosecond single-box Ti:Sapphire oscillator, 10 W Millennia pumped, with automated wideband wavelength tuning from 710 to 950 nm, pulsewidth < 80 fs / System is in excellent condition with less than 840 hours of use on the head



Spectra-Physics Quanta-Ray Pulsed Nd:YAG Laser / Model PRO-230 / 1064 nm and 532 nm operation / Manufactured May 2001 / Rated 1250 mJ/pulse @ 1064 nm, 650 mJ/pulse @ 532 nm / 8-12 ns pulse width at 1064 nm, 6-10 ns pulse width at 532 nm / 220/240 V, single phase power required





Coherent Infinity Q-switched pulsed YAG laser Rating: 0.1-50 Hz rep rate: 500 mj/pulse at 1064 nm 250 mj/pulse at 532 nm Pulse width of 3.5 ns at 1064 nm, and 3 ns at 532 nm 50-100 Hz rep rate: 400 mj/pulse at 1064 nm 200 mj/pulse at 532 nm Divergence, full angle: < 9.7 mrad Line width: single longitudinal mode < 2x transform limit due to diode pumped injection seeded oscillator Single shot: < 250 MHz Timing jitter: < 500 psec SBS cell (phase conjugate mirror) for wave front phase correction Output beam size: 5.5mm Includes manual and software. XPO Type II (OPO) and XPO-UV currently installed. Tuning Range – Signal: 420 to 650 nm, Idler: 2200 to 1000 nm, SHG: 210 to 325 nm (420 to 650 nm)



Coherent Equinox-Pilot laser system for use in crystalline-silicon(c-Si) solar cell manufacturing production / It is configured with a load/unload wafer turntable and two Coherent laser systems / The first is a Coherent Talisker 355-4 (4W @ 355nm), and the second is a Coherent Avia 355-20 (20W @ 355nm) / This system was manufactured in 2009



Lee Laser Pulsed Diode-Pumped Nd:YAG Laser System / Model LDPP-50M / Manufactured August 2009 / Rated 50 watts / Less than 750 hours use / Includes beam delivery model N3307-1 Fiber CCTV assembly with B/W CCTV / 220V single phase power required / Tested operational (please see image, power meter is set on the 150 watt range)



Telesis Fiber Laser Marking/Engraving System / FQ10 Model 6 / Windows based Merlin II LS Visual Design Software / Manufactured October 2008 / 160 mm lens with 3.5″ X 3.5″ marking field / Air-cooled / 10 Watt fiber laser / 110 volt operation / Includes enclosure with 2 bay rotary / System powers up and was able to mark/engrave metal running a test program



Telesis Fiber Laser Marking/Engraving System / Model Zenith 10F / Windows XP based Merlin II LS Visual Design Software / Manufactured August 2006 / 163 mm lens with 4.33″ X 4.33″ marking field / Air-cooled / 10 Watt fiber laser / 110 volt operation / Includes enclosure with manual Z-axis bedplate and red pilot/pointer laser / System powers up and was able to mark/engrave metal running a test program

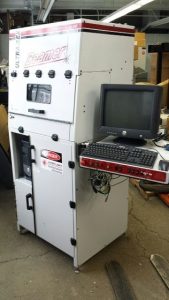

Laservall Beamer Ultra-Dex Laser Marking/Engraving System / Model Violino / Windows XP based Laservall Smartist version 4.1 software / Air-cooled / Diode pumped solid state laser / Q-Switched Nd:YAG / 1064nm / 4.3 inch marking field / 110 volt operation / Includes enclosure with motorized Z-axis and red pilot/pointer laser / We believe this is a 10 watt system / System powered up and was able to mark/engrave metal running a test program



CLC Control Laser Corp. Nd:YAG laser marking/engraving system / Model Insignia LX-900 / Manufactured June 2000 / 1064 nm / Software upgraded to Prolase Plus for Windows XP / Includes enclosure, motorized z-axis with digital readout, red diode aiming beam / Requires 230 volt, single phase, 60 Hertz, 50 amps / Tested operational



Synrad FireStar CO2 Laser Tube Cutting System / Model FSF400SB / Manufactured September 2006 / Rated 400 Watts / 230 Volt, 3 Phase



Coherent HighLight DUO fiber delivered diode laser system / Model HighLight FAP 30 / Wavelength 800-820nm / Rated 30 watts / Manufactured December 2012 / In like new condition with only 2 hours of use! / 110 volt, 50/60Hz 10A power required / Requires SMA 905 fiber (fiber pictured/used during test not included) / Includes control software and one key (computer not included) / Output power set to three watts and measured at three watts

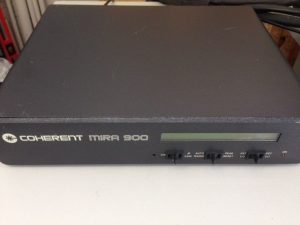

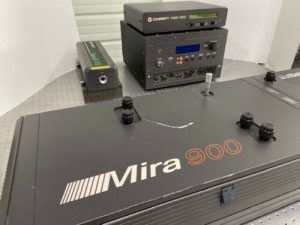

Coherent MIRA 900 Controller / Part Number 0163-709-00 / Powers up, no further testing has been done





CLC Control Laser Corp. Icon/Insignia LX-900 Maxwell Power Supply For Nd:YAG Marking System / Please see picture for model number / 220 Volt, Single Phase, 50/60 Hz power required / Tested operational



CLC Control Laser Corp. Icon/Insignia LX-900 RF Driver For Nd:YAG Marking System / Part Number 228692 / Tested operational



Lee Laser Nd:YAG Pump Chamber/Head Assy. / Model 120641-001 / Includes Rod, Lamp and Reflectors / Looks like it may be new old stock, can’t be sure



Lee Laser Autocollimator for Nd:YAG Laser Alignment / Part Number 010187-001 / 120V / Working



Continuum pulsed Nd:YAG laser system / Model Powerlite 7010 / 1064nm, 532nm, and 355nm operation / Manufactured 2001 / Single lamp, twin rod (oscillator, amplifier) pump chamber / Rated 850 mJ/pulse @ 1064 nm, 400 @ 532nm, and 200 @ 355nm / 6-8 ns pulse width at 1064nm, 5-7 ns pulse width at both 532nm and 355nm / 220/240V, single phase power required / Fundamental has been measured just under spec. (possibly needs tuned)

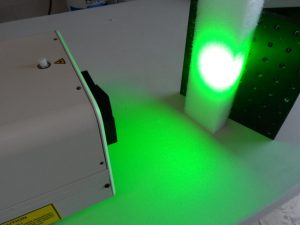

Continuum pulsed Nd:YAG laser system / Model Surelite SLI-20 / 1064 & 532 nm output / Manufactured August 2012 / Rated 420 mJ/pulse @ 1064 nm (we measured over 8.5 watts average power) at 20Hz rep rate with a 5-7 ns pulse width / Rated 160 mJ/pulse @ 532 nm (we measured almost 3.5 watts average power) at 20Hz rep rate with a 4-6 ns pulse width

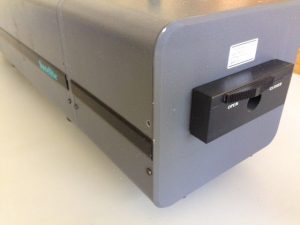

Continuum pulsed Nd:YAG laser system / Model Surelite / 1064 & 532 nm output / 30 Hz



Applied Materials/Applied Baccini UV Laser Edge Deletion/Isolation system for crystalline silicon photovoltaic cell production / Includes Coherent AVIA 355-28 / Manufactured 2011 / 28 watts @ 355 nm / Excellent condition with less than 400 hours of use



Cook/Convergent Laser Technologies pulsed medical holmium laser system / Model Odyssey 30B / Manufactured June 2013 / Rated 30 watts

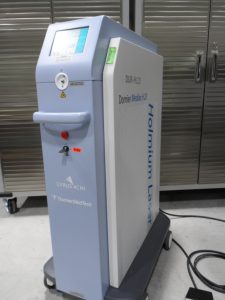

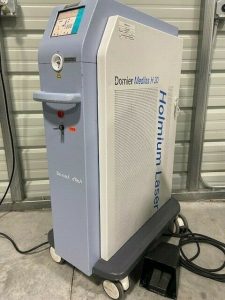

Dornier MedTech pulsed medical holmium laser system / Model Medilas H20 / Manufactured September 2006 / Rated 20 watts @ 2100nm

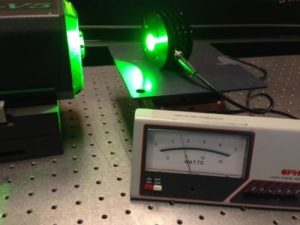

Coherent Verdi Laser System / Model Verdi-5W / Manufactured 2005 / 5 watts @ 532 nm / Tested operational
